The Newton-Raphson method#
The efficiency and generalizability of the Newton-Raphson method makes it the go-to root finder for nonlinear system solvers.
NB: many people abbreviate ‘The Newton-Raphson method’ to simply ‘The Newton method’, but this causes confusion with Newton’s method for optimization which is realted, but a different algorithm.
The Newton-Raphson method has quadratic convergence (\(k=2\)) near the root which is a great result! It does so, however at the cost of calculating the Jacobian and solving a linear system.
As we saw in the previous lecture, Newton’s method amounts to usign the current position and the (true) tangent to estimate the next guess:
Graphically:
Near the root, it converges quadratically, but there are some not-uncommon scenarios where it can fail:
Extensions which have greater than quadratic convergence using higher order derivative information do exist, however the additional computational cost is typically on par with another Newton-Raphson step, and therefore they are only used in certain niche applicaitons.
The Newton-Raphson method only finds local roots, not all of them. Efficient and robust root finding requires a good initial guess.
Fortunatley, in Engineering, this is commonly the case!
Example of an initial guess#
If we need to solve for temperature \(T(x,y,z,t)\) as a nonlinear, time dependent, partial differential equation, we will be given an initial value for \(T(x,y,z, t=0)\).
When solving a nonlinear equation for \(T(x,y,z,t=1)\), what do you suppose the initial guess should be?
Answer: The initial guess for should be the solution at the preceeding time step!
Example: find the root of \(x^3-2x+2\)#
There is a real root at x~-1.769.
import numpy as np
import matplotlib.pyplot as plt
def f(x):
"""The function whose root we want to find."""
return x**3 - 2*x + 2
def df(x):
"""The derivative of the function."""
return 3*x**2 - 2
def newton_raphson(f, df, x0, max_iter=8, tolerance=1e-6):
"""
Finds a root of the function f using the Newton-Raphson method.
Args:
f: The function whose root we want to find.
df: The derivative of the function.
x0: The initial guess for the root.
max_iter: The maximum number of iterations.
tolerance: The tolerance for the root.
Returns:
The root of the function, or None if the method fails to converge.
"""
x = x0
guesses = [x]
for i in range(max_iter):
x_new = x - f(x) / df(x)
guesses.append(x_new)
if abs(x_new - x) < tolerance:
return x_new, guesses
x = x_new
return None, guesses
x0 = 2
root, guesses = newton_raphson(f, df, x0)

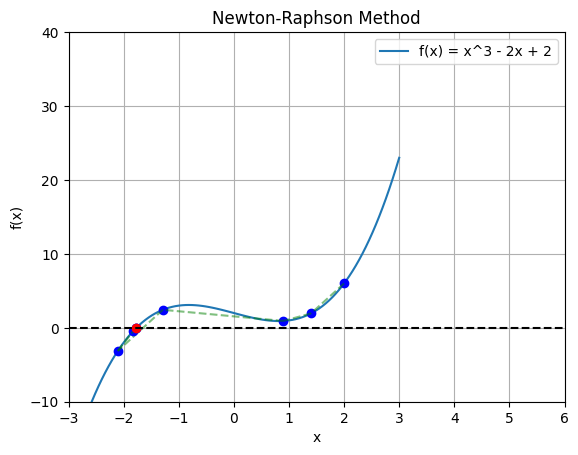

# Plot the function and the guesses
x_vals = np.linspace(-3, 3, 100)
y_vals = f(x_vals)
plt.plot(x_vals, y_vals, label="f(x) = x^3 - 2x + 2")
plt.xlabel("x")
plt.ylabel("f(x)")
plt.title("Newton-Raphson Method")
for i, guess in enumerate(guesses):
plt.plot(guess, f(guess), 'ro' if i == len(guesses) - 1 else 'bo')
if i > 0:
plt.plot([guesses[i-1], guess], [f(guesses[i-1]), f(guess)], 'g--', alpha=0.5)
plt.axhline(0, color='black', linestyle='--') # Add horizontal line at y=0
plt.legend()
plt.xlim([-3, 6]) # Set x-axis limits
plt.ylim([-10, 40]) # Set y-axis limits
plt.grid(True)
plt.show()
if root:
print(f"Root found: {root:.6f}")
else:
print("Newton-Raphson method failed to converge.")
Newton-Raphson method failed to converge.
Example: Find the root of \(\sqrt(x)\)#
import numpy as np
def f(x):
return np.sqrt(x)
def jacobian(x):
return .5*x**(-1./2)
root, guesses = newton_raphson(f, jacobian, x0 = .1)
print(root, guesses)
None [0.1, np.float64(-0.1), np.float64(nan), np.float64(nan), np.float64(nan), np.float64(nan), np.float64(nan), np.float64(nan), np.float64(nan)]
C:\Users\wellandm\AppData\Local\Temp\ipykernel_37792\2142821022.py:3: RuntimeWarning: invalid value encountered in sqrt
return np.sqrt(x)
C:\Users\wellandm\AppData\Local\Temp\ipykernel_37792\2142821022.py:6: RuntimeWarning: invalid value encountered in scalar power
return .5*x**(-1./2)
What went wrong here? What else could we try?
Some common failure situations#
Before we talk about mitigation strategies, let’s generalize the Newton-Raphson method to N-D
The N-D Newton-Raphson method#
The Newton-Raphson method thus far has been described for scalar functions or scalar arguments (i.e.: 1-D).
Consider a system of \(n\) unkowns \(\vec{x}\) and a set of \(n\) nonlinear equations that we wish to solve simultaneously:
which may be summarized as a vector function \(\vec{f}(\vec{x})=\vec{0}\) also of dimension \(n\). Since we have \(n\) equations and \(n\) unkowns, we can (hopefully) find an exact solution of the simultaneous set of equations, i.e.: a root.
The Newton-Raphson method generalized quite readily except the derivative must be replaced by the vector-derivative of a vector function (called the Jacobian):
where we can see that \(J\) is a square \(n \times n\) matrix. The Newton-Raphson method takes the form:
which is …. (wait for it!)… a linear system solving for the vector of increments, \(\Delta\vec{x}\)!
This is an example of computational-thinking: we have broken down a muiltivariable non-linear vector function into a sequence of linear systems!
Example: solve a system of nonlinear equations:#
Answer#
Rewrite the equations as a system of nonlinear functions:
or in vector form:
The Jacobian is:
Now for a given \(\vec{x}\) we can solve for the increment.
import numpy as np
def f(x):
"""
The system of nonlinear equations.
"""
x, y, z = x
return np.array([
x**2 + y**2 - z - 1,
x - y**2 + z**2 - 1,
x * y * z - 1
])
def jacobian(x):
"""
The Jacobian matrix.
"""
x, y, z = x
return np.array([
[2 * x, 2 * y, -1],
[1, -2 * y, 2 * z],
[y * z, x * z, x * y]
])
def newton_raphson(x0, tolerance=1e-6, max_iterations=100):
"""
Newton-Raphson method for solving a system of nonlinear equations.
"""
x = x0
for iter in range(max_iterations):
f_x = f(x)
print("Iteration, ", iter, " the guess is ", np.round(x,3), " with residual ", np.linalg.norm(f_x) )
J_x = jacobian(x)
#~~~~ What now? ####
delta_x = np.linalg.solve(J_x, -f_x)
#~~~~
x = x + delta_x
if np.linalg.norm(f_x) < tolerance:
return x
return None # No solution found within the maximum iterations
# Initial guess
x0 = np.array([2, 2, 2])
# Solve the system
solution = newton_raphson(x0)
if solution is not None:
print("Solution found:", solution)
else:
print("No solution found within the maximum iterations.")
Iteration, 0 the guess is [2 2 2] with residual 8.660254037844387
Iteration, 1 the guess is [1.04 1.61 1.6 ] with residual 1.9930051233250754
Iteration, 2 the guess is [1.07 1.091 1.066] with residual 0.36503151275567536
Iteration, 3 the guess is [1.001 1.008 1.007] with residual 0.019821923184321227
Iteration, 4 the guess is [1. 1. 1.] with residual 9.992137180440437e-05
Iteration, 5 the guess is [1. 1. 1.] with residual 2.103116571058853e-09
Solution found: [1. 1. 1.]
Let’s try a different initial guess:
solution = newton_raphson(np.array([3, 3 , 3]))
Iteration, 0 the guess is [3 3 3] with residual 29.597297173897484
Iteration, 1 the guess is [1.054 2.533 2.524] with residual 6.998575456719698
Iteration, 2 the guess is [0.889 1.641 1.66 ] with residual 1.6424438231583698
Iteration, 3 the guess is [ 2.047 0.239 -0.06 ] with residual 3.603276469109183
Iteration, 4 the guess is [1.707 1.028 2.231] with residual 5.517969890171211
Iteration, 5 the guess is [1.238 0.984 1.279] with residual 1.0856646419132276
Iteration, 6 the guess is [1.031 0.998 1.016] with residual 0.0930478495194166
Iteration, 7 the guess is [1. 1. 1.] with residual 0.0010714827370243664
Iteration, 8 the guess is [1. 1. 1.] with residual 1.8136147365183113e-07
Great, but something is funny with the residual… Let’s keep going!
solution = newton_raphson(np.array([10, 10 , 10]))
Iteration, 0 the guess is [10 10 10] with residual 1016.7610338717747
Iteration, 1 the guess is [1.037 9.488 9.486] with residual 122.54179913742261
Iteration, 2 the guess is [0.99 5.009 5.009] with residual 31.151332424357115
Iteration, 3 the guess is [0.91 2.803 2.812] with residual 7.863318171708681
Iteration, 4 the guess is [0.756 1.814 1.861] with residual 1.8475446018143282
Iteration, 5 the guess is [0.273 1.768 1.965] with residual 0.24020703623206316
Iteration, 6 the guess is [0.319 1.664 1.858] with residual 0.01924168764896064
Iteration, 7 the guess is [0.327 1.656 1.848] with residual 0.00026048720664438785
Iteration, 8 the guess is [0.327 1.656 1.848] with residual 4.90450098732614e-08
Still converged but to a different root…
What about negatives?
solution = newton_raphson(np.array([-1, -1 ,-1]))
Iteration, 0 the guess is [-1 -1 -1] with residual 3.4641016151377544
Iteration, 1 the guess is [-7. 5. 1.] with residual 86.62563131083085
Iteration, 2 the guess is [-3.924 2.106 0.99 ] with residual 21.7413789453847
Iteration, 3 the guess is [-2.54 0.452 1.005] with residual 5.807927456281761
Iteration, 4 the guess is [-1.921 -0.552 1.606] with residual 1.686308408306664
Iteration, 5 the guess is [-1.619 -0.393 1.659] with residual 0.13083381603982347
Iteration, 6 the guess is [-1.583 -0.383 1.652] with residual 0.0015836394832936728
Iteration, 7 the guess is [-1.583 -0.382 1.652] with residual 2.8665073240160246e-07
Another root?
solution = newton_raphson(np.array([-10, 0,-10]))
Iteration, 0 the guess is [-10 0 -10] with residual 140.72313242676202
Iteration, 1 the guess is [-4.786 0.01 -5.289] with residual 35.1045008430222
Iteration, 2 the guess is [-2.189 0.049 -2.946] with residual 8.720052763994339
Iteration, 3 the guess is [-0.908 0.203 -1.8 ] with residual 2.2103101495737234
Iteration, 4 the guess is [-0.125 0.844 -1.296] with residual 1.3486694778260442
Iteration, 5 the guess is [-1.024 0.136 -1.243] with residual 1.6270099713785144
Iteration, 6 the guess is [-0.291 0.885 -1.23 ] with residual 1.408993850920174
Iteration, 7 the guess is [-1.226 -0.019 -1.188] with residual 2.1415268760927777
Iteration, 8 the guess is [-0.531 0.676 -1.227] with residual 1.216428132602447
Iteration, 9 the guess is [-3.688 -2.373 -1.03 ] with residual 23.600319365841493
Iteration, 10 the guess is [-2.12 -0.752 -1.027] with residual 6.304563296941992
Iteration, 11 the guess is [-1.242 0.241 -1.154] with residual 2.109349117256319
Iteration, 12 the guess is [-0.356 0.836 -1.314] with residual 1.3331778596549482
Iteration, 13 the guess is [-1.391 -0.202 -1.172] with residual 2.7375761952550013
Iteration, 14 the guess is [-0.711 0.521 -1.209] with residual 1.2436300157477957
Iteration, 15 the guess is [ 1.97 3.045 -1.403] with residual 17.682903586717295
Iteration, 16 the guess is [ 0.43 1.799 -1.505] with residual 4.740653742813579
Iteration, 17 the guess is [-0.056 0.927 -1.135] with residual 1.5069123725644382
Iteration, 18 the guess is [-0.984 0.258 -1.274] with residual 1.5340770119968596
Iteration, 19 the guess is [-0.125 1.026 -1.26 ] with residual 1.6777911160799737
Iteration, 20 the guess is [-0.865 0.314 -1.208] with residual 1.3487522282381879
Iteration, 21 the guess is [ 0.135 1.306 -1.261] with residual 2.5289659936255964
Iteration, 22 the guess is [-0.533 0.632 -1.217] with residual 1.1676163605960792
Iteration, 23 the guess is [-5.092 -3.751 -0.999] with residual 48.68184454962859
Iteration, 24 the guess is [-2.826 -1.497 -0.992] with residual 12.538686428669257
Iteration, 25 the guess is [-1.703 -0.194 -1.021] with residual 3.663497400946906
Iteration, 26 the guess is [-0.837 0.528 -1.291] with residual 1.413679669121953
Iteration, 27 the guess is [ 0.892 1.976 -1.387] with residual 6.488587658069775
Iteration, 28 the guess is [ 0.262 1.056 -1.057] with residual 1.9381372081194084
Iteration, 29 the guess is [-0.871 0.564 -1.45 ] with residual 1.5561820481695032
Iteration, 30 the guess is [ 0.873 1.937 -1.413] with residual 6.26802202959098
Iteration, 31 the guess is [ 0.264 1.032 -1.055] with residual 1.8833724744840956
Iteration, 32 the guess is [-0.899 0.554 -1.465] with residual 1.6043219785292986
Iteration, 33 the guess is [ 0.689 1.762 -1.401] with residual 5.025175697742625
Iteration, 34 the guess is [ 0.033 0.961 -1.146] with residual 1.598476653548893
Iteration, 35 the guess is [-0.891 0.358 -1.295] with residual 1.3938360075888543
Iteration, 36 the guess is [ 0.159 1.293 -1.28 ] with residual 2.503884598918348
Iteration, 37 the guess is [-0.516 0.635 -1.22 ] with residual 1.155646474549891
Iteration, 38 the guess is [-4.362 -3.057 -1.052] with residual 34.90941151659323
Iteration, 39 the guess is [-2.445 -1.144 -1.045] with residual 9.087482657747831
Iteration, 40 the guess is [-1.464 -0.016 -1.093] with residual 2.768029026950773
Iteration, 41 the guess is [-0.64 0.619 -1.288] with residual 1.2416888656491218
Iteration, 42 the guess is [32.342 31.94 -3.679] with residual 4436.189156259958
Iteration, 43 the guess is [15.693 16.412 -3.681] with residual 1107.961904636607
Iteration, 44 the guess is [ 7.126 8.812 -3.71 ] with residual 274.39194974597626
Iteration, 45 the guess is [ 2.142 5.383 -4.023] with residual 61.00142372146434
Iteration, 46 the guess is [ 3.103 1.911 -0.705] with residual 14.016583257210655
Iteration, 47 the guess is [ 1.524 1.138 -0.475] with residual 3.629989084885241
Iteration, 48 the guess is [1.224 0.481 0.209] with residual 1.0206120878632898
Iteration, 49 the guess is [1.268 1.093 1.425] with residual 1.5189063185361946
Iteration, 50 the guess is [1.035 1.027 1.069] with residual 0.19243332948279715
Iteration, 51 the guess is [1.001 1.001 1.003] with residual 0.006473943066547444
Iteration, 52 the guess is [1. 1. 1.] with residual 9.601721087105206e-06
Iteration, 53 the guess is [1. 1. 1.] with residual 2.1293781082294768e-11
Yikes! Note what’s happening to guesses and the residual… odd behaviour indeed!
